PVC Wood Grain Film

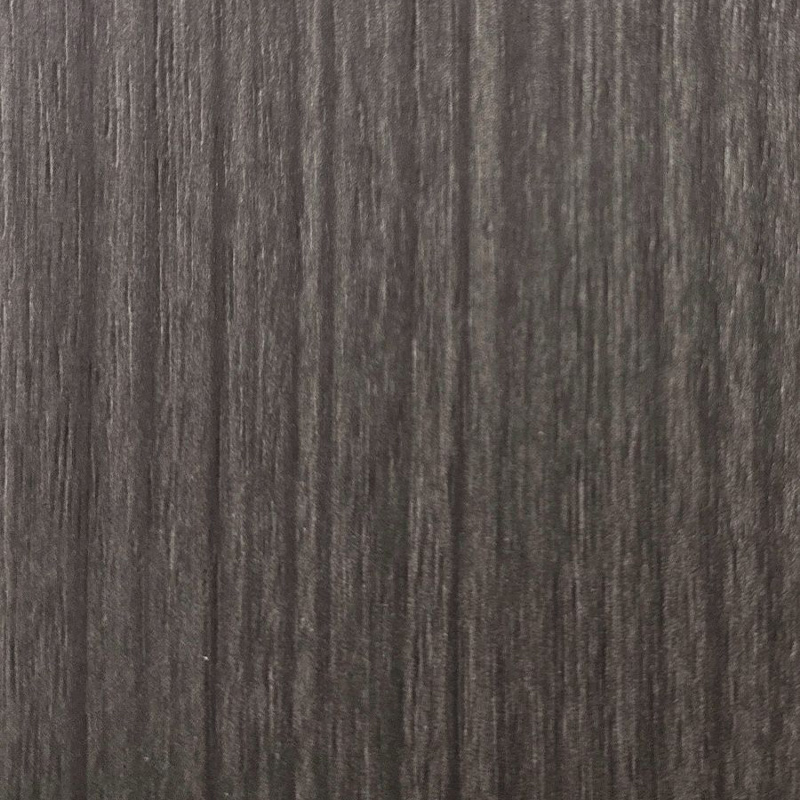

PVC Wood Grain Film is a plastic film with imitation wood grain pattern on the surface. Through a special process, PVC resin is combined with wood grain texture to simulate the visual effect of natural wood. Its core function is to provide low-cost and easy-to-install wood grain decoration solutions for furniture, architectural decoration, electronic products and other fields, replacing solid wood or veneer materials.

Features

Basic parameters:

Thickness: 0.12mm-0.6mm (common specifications 0.14mm, 0.2mm, 0.3mm).

Width: 800mm-1460mm (customized width is supported).

Length: 100m-500m/roll (adjusted according to thickness).

Material: polyvinyl chloride (PVC) substrate, with UV protective layer on the surface.

Temperature range: -20℃ to 60℃, short-term high temperature resistance 80℃.

Abrasion resistance: Taber abrasion test ≥500 turns (ASTM D4060 standard).

Core features:

Adopting multi-layer co-extrusion process, the surface wood grain texture clarity reaches 0.01mm level, color difference ΔE≤1.5 (CIELAB standard); tensile strength ≥29MPa, elongation at break ≥200%; passed SGS certification, meets ROHS environmental protection standards, formaldehyde emission ≤0.05mg/m³; supports vacuum blister, hot pressing and other processing methods, lamination flatness ≤0.2mm/m.

Application scenarios

Furniture manufacturing and interior decoration

Scenario: cabinets, wardrobes, office furniture surface decoration.

Solution: The wood grain film is 0.2mm thick and 1220mm wide. It is laminated with medium-density fiberboard (MDF) through vacuum blister process to replace traditional veneer and reduce material costs by 30%-50%; the surface wear-resistant layer can resist daily scratches and extend the service life to more than 8 years.

Commercial space and exhibition display

Scenario: shop signs, display cabinets, partition wall decoration.

Solution: High-gloss wood grain film (gloss ≥ 90GU) with LED light strips to enhance the texture of the space; lightweight design with a thickness of 0.14mm to reduce the structural load; UV resistance (level 8, ASTM G154 standard) ensures that it will not fade for 3 years of outdoor use.

Upgrade of vehicle interior

Scenario: interior decoration of yachts, RVs, and buses.

Solution: Flame-retardant wood grain film (passing EN 45545-2 standard) is applied to seats, door panels, and ceilings; reinforced products with a thickness of 0.3mm increase impact strength by 40% to adapt to vibration environments; moisture-proof performance (water absorption rate ≤ 0.5%) to avoid mold in humid environments.

Electronic products and packaging design

Scenario: audio housing, gift boxes, and electronic product films.

Solution: Matt wood grain film (gloss ≤ 15GU) reduces fingerprint residue; ultra-thin version with a thickness of 0.12mm, suitable for curved surface fitting; surface antistatic treatment (surface resistance 10⁶-10⁹Ω) to avoid dust absorption.

Building exterior walls and garden landscapes

Scenario: exterior wall decorative panels, flower boxes, pavilion coverings.

Solution: Weather-resistant wood grain film (passed 1000 hours salt spray test) replaces antiseptic wood to reduce maintenance costs; self-cleaning coating (contact angle ≥ 110°) reduces stain adhesion; thickened version with a thickness of 0.45mm, wind pressure resistance increased to 1200Pa.

Educational institutions and medical places

Scenario: desks, medical cabinets, laboratory furniture surfaces.

Solution: Antibacterial wood grain film (antibacterial rate of Escherichia coli ≥ 99.9%) meets medical environmental hygiene standards; easy-to-clean properties (oily handwriting can be wiped with alcohol) reduce the risk of cross infection; environmentally friendly glue (VOC release ≤ 0.01mg/m³) ensures indoor air quality.

Care and maintenance guide

Cleaning:

For daily cleaning, wipe with a soft cloth dipped in a neutral detergent (pH 6-8), and avoid using detergents containing alcohol or solvents.

Stubborn stains (such as ink) can be treated locally with rosin water, but they need to be rinsed with clean water and wiped dry immediately.

Protection:

Avoid scratches with sharp objects. It is recommended to cover the film with a transparent protective film (thickness 0.05mm).

For areas exposed to sunlight for a long time, reapply UV protectant every 2 years.

Repair:

Minor scratches can be repaired by local heating and softening with a hot air gun (temperature 60℃-80℃).

Severe damage requires replacement of the entire film, with an overlap width of ≥5mm at the interface and sealed with special glue.

Storage:

Unopened wood grain film should be stored in a dry environment (humidity ≤50%), at a temperature of 5℃-30℃, and avoid direct sunlight.

After opening, it must be used within 6 months, and the remaining part should be wrapped and sealed with moisture-proof paper.

FAQs

Q1: Is the wood grain film environmentally friendly?

A: It has passed SGS certification and meets ROHS standards. The formaldehyde emission is ≤0.05mg/m³ and can be safely used indoors.

Q2: Can the wood grain pattern be customized?

A: Customization is supported, with a minimum order quantity of 3,000 meters and a delivery cycle of 15-20 days.

Q3: Is it easy to bubble after lamination?

A: The vacuum blister process is used, the lamination temperature is 120℃-140℃, and the pressure is 0.4-0.6MPa, which can avoid blistering.

Q4: How is the high temperature resistance?

A: Short-term high temperature resistance is 80℃, and the long-term use temperature is ≤60℃. Avoid contact with open flames or high-temperature objects.

Q5: How long is the service life?

A: 8-10 years for indoor use and 3-5 years for outdoor use (depending on environmental differences).
