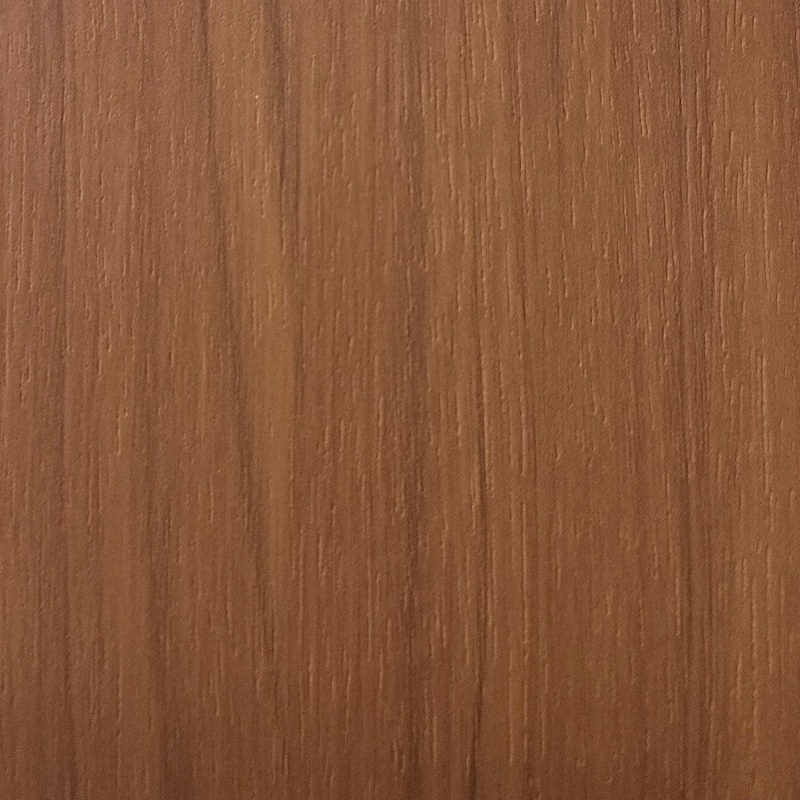

Wood Grain Film Wrap

Wood Grain Film Wrap is a flexible decorative material that uses high molecular polymers (such as PVC or PET) as the substrate and simulates the natural wood texture through precision printing and three-dimensional embossing processes. Its core value lies in achieving high-simulation wood grain effects (similarity ≥ 95%) at a low cost, while also having environmental protection, waterproof, wear-resistant and other characteristics, suitable for furniture renovation, commercial space decoration and industrial equipment camouflage and other fields. The product thickness ranges from 80-500μm, supports customized width (600-2200mm) and length (80-3000m), and can meet large-scale production and personalized needs.

Product Features

1. Environmentally friendly substrate and certification

PVC substrate:

Using environmentally friendly polyvinyl chloride (PVC content ≥ 60%), tensile strength ≥ 16MPa, temperature resistance range -20℃ to 60℃, through ROHS certification, to ensure no lead, cadmium and other heavy metal residues.

PET substrate: Transparency ≥ 90%, impact strength ≥ 150kJ/m², suitable for high light transmittance scenes (such as display cabinet lining), and certified by the FSC Forest Stewardship Council, the proportion of recycled materials in raw materials ≥ 30%. Environmental standards: Formaldehyde emission ≤ 0.05mg/m³ (E1 standard), VOC emission ≤ 0.01mg/m³, in line with the use requirements of children's rooms and medical spaces. 2. Simulation texture and touch 3D embossing process: Through precision molds to achieve a texture depth of 0.1-0.3mm, simulate the radial straight grain, tangential mountain grain and tiger skin grain effects of real wood, the touch is ≥ 95% similar to natural wood, and the visual and tactile dual restoration. High-precision printing: Adopting 8-color high-definition printing technology, color restoration ΔE ≤ 2 (it is difficult for the human eye to distinguish color difference), supporting customized colors and textures (minimum order quantity 500㎡), meeting the brand VI system matching requirements. 3. Functionality and durability

Waterproof and anti-fouling:

The surface is coated with a nano-hydrophobic layer (contact angle ≥110°). After the water stains stay for 30 minutes, there is no residue when wiped off. The oil cleaning efficiency is ≥95%, which is suitable for humid environments such as kitchens and bathrooms.

Abrasion and scratch resistance:

Surface hardness ≥3H (pencil hardness test), wear resistance ≥5000 times (Taber 5135 standard), scratch resistance is better than traditional wood grain stickers, and the service life is extended by 3-5 years.

Flame retardant performance:

Passed the UL 94 VTM-0 flame retardant test, the self-extinguishing time from fire is ≤2 seconds, and the smoke density level (SDR) is ≤75, which meets the fire safety standards for public places.

4. Installation and adaptability

Removable glue:

The back is coated with acrylic-based adhesive (peel strength ≥8N/25mm), which supports seamless tearing within 3 years, and the number of repeated pastings is ≥10 times, reducing renovation costs and construction difficulties.

Grid-line assisted cutting:

1cm×1cm grid lines are printed on the back, with a cutting accuracy of ±0.5mm, suitable for curved surfaces (radius of curvature ≥500mm) and right-angle edges, and single-person operation efficiency is increased by 70%.

Multi-material adaptation:

Can be pasted on flat or slightly curved surfaces (such as wood, metal, glass, and tiles), with a surface roughness of Ra≤6.3μm, and needs to be cleaned and degreased in advance.

Application scenarios

1. Furniture renovation and DIY

Old furniture transformation:

Covering the surface of old cabinets and desks, the renovation cost of a single piece of furniture is reduced by 70%, and the construction time is shortened to 2 hours, avoiding the trouble of dismantling and reinstalling traditional wood veneers.

User case: A family used this product to unify the furniture in the rental house into walnut wood grain, and the rental premium rate increased by 15%.

Children's room decoration:

Supports seasonal theme changes (such as winter cedar grain and spring maple grain), no glue residue, and prevents children from contacting harmful substances such as formaldehyde.

DIY creative application:

Used for hand-made wooden photo frames, storage boxes, etc., to enhance the texture of the work and reduce material costs.

2. Commercial space upgrade

Chain store image unification:

A catering brand achieved unified wall and furniture styles in stores across the country within 48 hours through this product, saving 30% of the cost of single-store renovation and increasing customer retention rate by 10%.

Museum showcase protection:

The inner lining uses this product to avoid scratches caused by direct contact between exhibits and metal (anti-scratch performance increased by 80%), and at the same time, the antibacterial coating (Escherichia coli inhibition rate ≥ 99.9%) ensures the sanitation and safety of cultural relics.

Hotel room renovation:

Quickly renovate areas such as headboards and wardrobe doors, reduce construction noise by 80%, and reduce interference to guests.

3. Industrial equipment camouflage

Communication base station beautification:

The metal shell is wrapped with imitation wood grain film to reduce the abruptness of the equipment, improve the integration of urban landscape, and extend the service life of the equipment (ultraviolet aging test passed 1000 hours QUV accelerated test).

Agricultural machinery protection:

Cover the surface of tractors and harvesters to prevent UV aging (UV resistance increased by 50%) and reduce maintenance frequency.

Factory equipment camouflage:

Hide the original appearance of industrial equipment, improve the overall aesthetics of the workshop, and reduce the risk of fire through flame retardant properties.

Cleaning and maintenance guide

1. Daily cleaning

Decontamination steps:

Use a microfiber cloth (weight ≥ 200g/m²) dipped in a neutral detergent (pH 6-8) to wipe the surface, and avoid using chlorine bleach.

Stubborn stains (such as glue residue) can be treated locally with isopropyl alcohol (concentration ≥ 70%) and rinse with clean water immediately after wiping.

Prohibited tools:

Avoid using steel wool, hard brushes or acidic detergents, which may cause the coating to fall off or discolor.

2. Long-term maintenance

UV protection:

Avoid direct sunlight (UV aging test passed 1000 hours QUV accelerated test), it is recommended to use with blackout curtains.

Moisture-proof treatment:

In an environment with humidity > 80%, it is recommended to use a dehumidifier to control the ambient humidity to prevent edge warping (warping height ≤ 2mm).

Regular inspection:

Check the adhesive status every 6 months. If warping or bubbles are found, local heating (≤ 60°C) can be performed and re-compacted.

FAQs

Q1: Does the product support customized textures?

A: Yes. The minimum order quantity is 500㎡, and more than 20 texture customizations such as straight lines, mountain patterns, and tiger skin patterns can be provided. The delivery cycle is 15-20 days.

Q2: Can it be used for bathroom walls?

A: It can be used for a short period of time (≤ 6 months). For a long time, it needs to be matched with a waterproof base layer (such as tiles or waterproof coatings) to avoid degumming caused by water vapor penetration.

Q3: Is the surface resistant to high temperatures?

A: The temperature resistance is ≤ 60°C. If it is in short contact with high-temperature objects (such as the bottom of a hot cup), an insulation pad must be used to prevent surface deformation.

Q4: Has the product passed environmental certification?

A: It has passed SGS, FSC and EU CE certification, and its VOC emission is ≤0.01mg/m³, which meets the standards for children's rooms.

Q5: How to avoid damage during transportation?

A: It uses five-layer corrugated boxes (compressive strength ≥3000N) and moisture-proof film packaging, and the drop test passes the ISTA 1A standard (1.2m high free fall).

Q6: Can it cover curved surfaces?

A: It can adapt to curved surfaces with a curvature radius of ≥500mm. During construction, a hot air gun (≤60℃) is required to assist in shaping.
